Model |

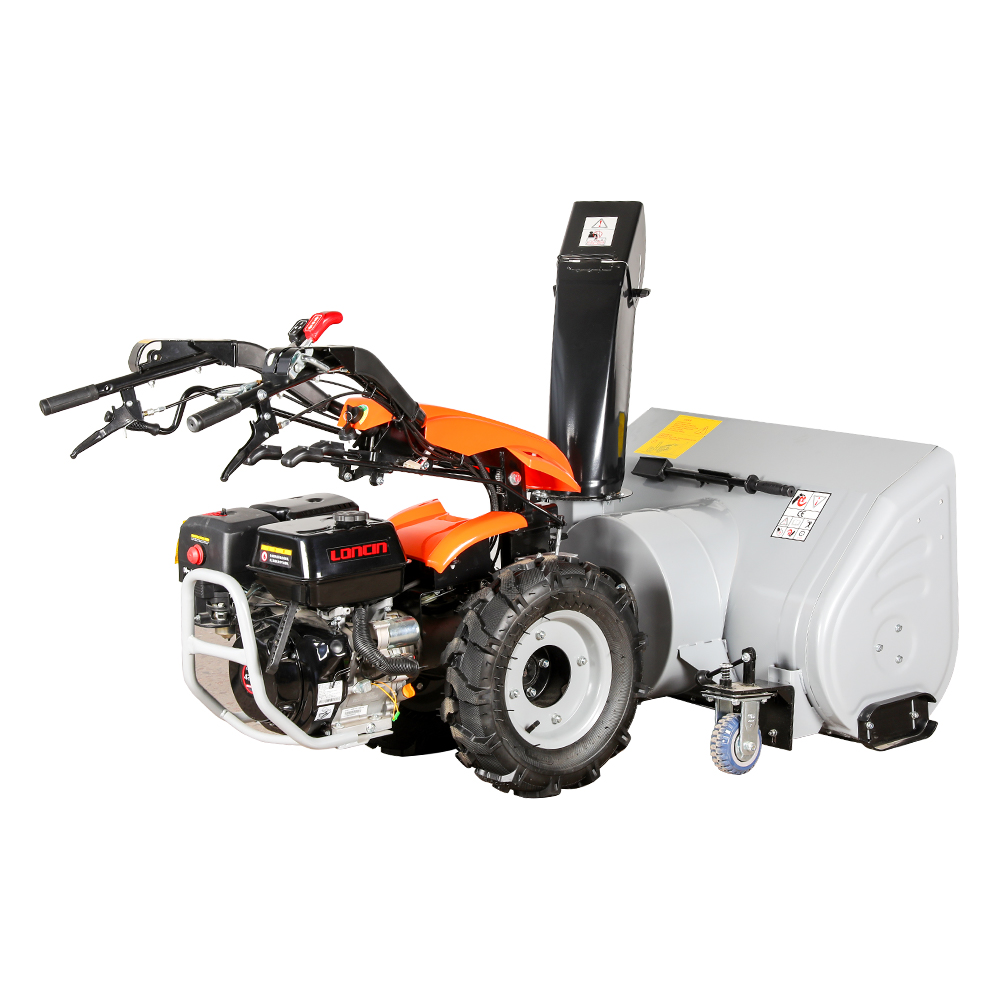

C-MT370 |
|
Power |
6.5hp /7hp/9hp/13hp available |
|
Start Method |
Electric start&recoil start |
|
Weight |
120kg |
|
Gears |
3 forward, 3(or2)reverse |
|
Handlebar |
Adjustable in height and sidewise in different positions. I.t can be rotated at 180° |
|
Working speed(km/h) |
Forward: I 1.18II2.76 III 12.67 reverse:I 1.24 II12.91 forward:I 1.3II3.0 III4.4 reverse: I 1.4 Il3.2III4.7 |
|
Wheel size |
5.00 x10.0 or 4.00x10.0 |
|
Transmission |
All gear drive and direct power transmission |
|
Lubricating System |
Oil bath lubrication |
|
P.T.O. |
990rpm at 3600rpm of the motor |
|
Gear ratio |
I 264.2:1 II 112.9:1 III24.5:1 |
|
Working width |
102cm |
|
Working height |
60cm |
|
Product model |
C-MT370 |
|
Clutch type |
Dry Clutch |
|
Gear |
3 forward 3(2) reverse |
|
Differential lockout |
Yes |
|
Tyre |
400- 10/500-10 |
|
Pto |
Yes |
|
Handle |
Adjustable |
|
Handle rating |
180° |
|
Emergency stop |
Optional |
|
Hand heating |
Optional |
|
Weight |
120kgs |
|
Speed(km/h) |
Forward: I 1.18 II 2.76 III 12.67, Reverse: I 1.24 II 2.91, |
